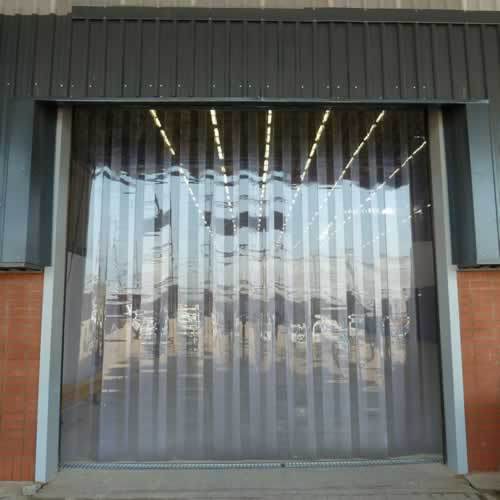

PVC Vinyl Plastic Strip Curtain Door Kit - 72x80 - 72 in. (6 ft) width x 80 in. (6 ft 8 in) height - Clear Smooth 8 in. strips with 50% overlap (Hardware included)
Commercial, Industrial Quality
- 72 in. (6 ft) width x 80 in. (6 ft 8 in) height
- Clear Smooth 8 in. strips with 50% overlap
- common door kit (Hardware Included)
BEST DELIVERED PRICE, GUARANTEED!
Step 1
Every Strip Curtain Door Kit comes with a Universal Mounting Hardware
Included Hanger works in every application
Jamb Mount
Wall Mount
Threaded Rod
Traffic Types
Pedestrian, Pallet Jack, Forklift
Max Door Height
25 Ft
PVC Strip Sizes
6” 8” 12” 16”
PVC Strip Types
All
Material
FDA/USDA/NSF compliant
Hardware Warranty
Lifetime
Installation Time
Fast
Need more info about our mounting hardware systems?
Learn more about the mounting hardware systems
and which is best to use in different situations by watching this quick 2 minute video.
Step 2
Choose the right PVC strip type
We offer a variety of PVC strips for a wide range of applications
Clear Smooth
Crystal clear transparent, flexible smooth vinyl for indoor or outdoor applications from -10° to 150°. Versatile and economical material for a wide range of applications.
PVC Strip Sizes
4”, 6”, 8”, 12”, 16
Min/Max Operating Temp
-10° / 150°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
Yes
Low Temperature.
Made with the softest, most flexible, low temp formulation on the market, to prevent strips from cracking in cold temperatures. Designed for freezer applications to -40° F.
PVC Strip Sizes
4”, 6”, 8”, 12”, 16
Min/Max Operating Temp
-40° / 90°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
No
Ribbed
Durable ribbed material reduces scratching from loads passing through the opening. Designed for heavy-duty, high-traffic applications in environment from -10° to 150°.
PVC Strip Sizes
8”, 12”, 16
Min/Max Operating Temp
-10° / 150°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
Yes
Anti-Insect Yellow Ribbed
Our exclusive Anti-Insect formulation repels flying insects with Citronella and prevents infiltration of the facility. Yellow color inhibits insect’s ability to detect light behind curtain.
PVC Strip Sizes
4”, 6”, 8”, 12”, 16
Min/Max Operating Temp
-10° / 150°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
Yes
Anti – Static Smooth
Our exclusive Anti-Insect formulation repels flying insects with Citronella and prevents infiltration of the facility. Yellow color inhibits insect’s ability to detect light behind curtain.
PVC Strip Sizes
4”, 6”, 8”, 12”, 16
Min/Max Operating Temp
-40° / 90°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
No
Opaque Black
Flexible, opaque black vinyl material used to create a total sight barrier between areas. Ideal for openings in conveyor belt operations to prevent visual access behind the opening.
PVC Strip Sizes
8”, 12”, 16
Min/Max Operating Temp
-10° / 150°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
Yes
Safety Orange
Highlights the outer edges of the opening, alerting employees and improving safety. Recommended for use as outer edge strips for strip doors with motorized traffic.
PVC Strip Sizes
4”, 6”, 8”, 12”, 16
Min/Max Operating Temp
-10° / 150°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
Yes
Red Welding (screenflex red)
Provides protection as a partial sight barrier against ultra-light and blue light radiation in welding applications. Screenflex Red is compliant with AWS and ISO standards.
PVC Strip Sizes
4”, 6”, 8”, 12”, 16
Min/Max Operating Temp
-40° / 90°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
No
Amber Welding (screenflex Bronze)
Provides protection as a partial sight barrier against ultra-light and blue light radiation in welding applications. Screenflex Bronze is compliant with AWS and ISO standards.
PVC Strip Sizes
8”, 12”, 16
Min/Max Operating Temp
-10° / 150°
Federal Food Safety Standards
Compliant
Protected for Direct Sunlight
Yes
Step 3
Choose the right strip size
The height of your door opening is the primary consideration for choosing the right strip size (width x thickness). All applications are slightly different but these basic guidelines will help select the best size for your door opening.
Guidelines for PVC Strip Size
Door Openings 6” High or Less - Create a lightweight pedestrian strip door, easy to pass through.
Door Openings 8' to 10' High - Create a strip door that can be used easily by a pedestrian but durable enough to face motorized traffic.
Door Openings 10' to 14' High - Create a durable heavy-duty industrial strip door heavy enough to stop airflow in larger openings.
Door Openings 15' Feet High or More - Create the ultimate heavy-duty strip door kit to seal off the largest openings in industrial facilities.
Need more info about PVC Strip Sizes?
Learn more about how to select the right width and thickness of PVC strip by watching this quick video.
Step 4
Choose the right strip overlap percentage
All PVC Strip Doors feature overlapped PVC strips, that create a seal of the doorway. The amount of overlap is communicated by percentage. Depending on the width of the PVC strips, different percentages of overlap are available.
6”in Wide x .60 Thick 67% Overlap
Standard Overlap
6”in Wide x .60 Thick 100% Overlap
Full Overlap
8”in Wide x .80 Thick 50% Overlap
Standard Overlap
8”in Wide x .80 Thick 100% Overlap
Full Overlap
12”in Wide x .120 Thick 67% Overlap
Standard Overlap
12”in Wide x .120 Thick 100% Overlap
Full Overlap
16”in Wide x .160 Thick 50% Overlap
Standard Overlap
16”in Wide x .160 Thick 100% Overlap
Full OverlapNeed more info about PVC Strip Sizes?
Learn more about how to select the right width and thickness of PVC strip by watching this quick video.
